PERMOTRAIL 4 CORE ORANGE TRAILING CABLE Per Meter

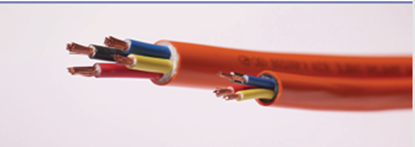

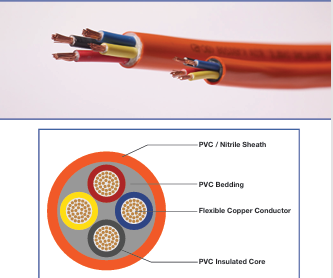

Construction
High conductivity bunched flexible copper conductors, insulated and color coded
with a general purpose flexible grade PVC. Insulated cores are twisted and bedded
with PVC to give the cable a round finish. Final protection is with a tightly bonded,
water, oil and abrasion resistant PVC/rubber blend nitrile sheath.
Applications
The supply of power to all types of indoor and outdoor mobile and portable
machinery in wet, oily, all weather conditions. Used on buildings and construction
sites, in workshops, mines, dockyards, opencast mining operations, railways, road
works and factories.
Packaging

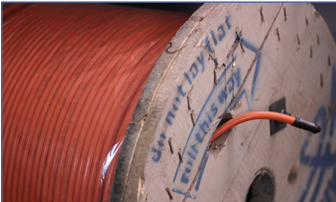

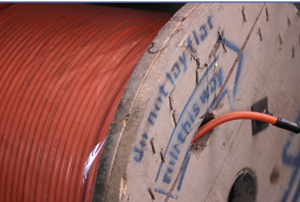

Available in 500 meter drum lengths.
Cut lengths also available on request.
This product is sequentially marked at one meter intervals for your convenience and
security.
Technical Data
4 CORE ORANGE TRAILING CABLE
Specification
Voltage Rating
Test Voltage
Temperature Range
Bending Radius
Flexibility Class
Conductor Type
Insulation Material
Sheath Material
Sheath Colors
Core Colors
600/1000 Volts
3000 Volts-10° to +80°C
8 x Diameter of cable
5
High conductivity annealed copper
Flexible grade PVC
PVC/Rubber Blend Nitrile
Orange
Red, Yellow, Blue, Black
(SABS 1507)
