MASTLITE MULTICORE OUTDOOR MAST LIGHTING CABLE Per Meter

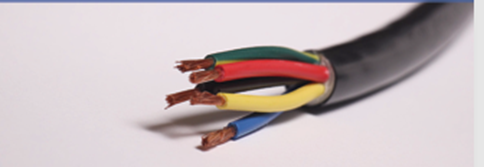

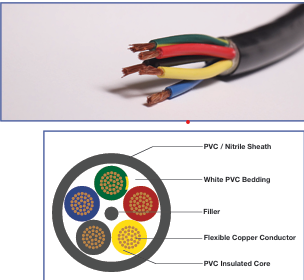

Construction
High conductivity bunched flexible copper conductors, insulated and color coded
with a general purpose flexible PVC. Insulated cores are twisted and then filled with
PVC bedding to give the cable a round finish. Final protection is with a tightly
bonded, ultraviolet, water, oil and abrasion resistant PVC/rubber nitrile blend sheath.
Applications
MASTLITE is used to supply power to all types of indoor and outdoor mast lighting
systems, including types requiring ignition pulses of up to 6000 volts. Ideal for use in
wet, oily, all weather conditions found in building/construction sites, workshops, toll
road lighting, complex security lighting, mines, dockyards, opencast mining
operations, railways, roadworks, sports stadiums and factories.
Packaging

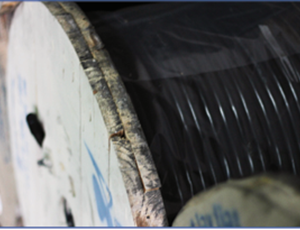

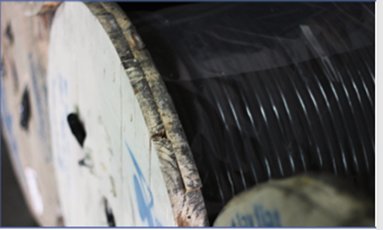

Available in 500 meter drum lengths.
Cut lengths also available on request.

Specification
Voltage Rating
Ignition Pulse Voltage Rating
Test Voltage
Temperature Range
Flexibility Class
Conductor Type
Insulation Material
Sheath Material
Sheath Color
Core Colors
600/1000 Volts
6000 Volts
3000 Volts-10° to +80°C
5
High conductivity annealed copper
General purpose flexible PVC
UV resistant PVC/Rubber Nitrile Blend
Black
5 core – Red, Black, Blue, Yellow, Green/Yellow
7 core – Red, Black, Blue, Yellow, Green/Yellow, Brown,
Brown with White tracer
(SABS 1574)
