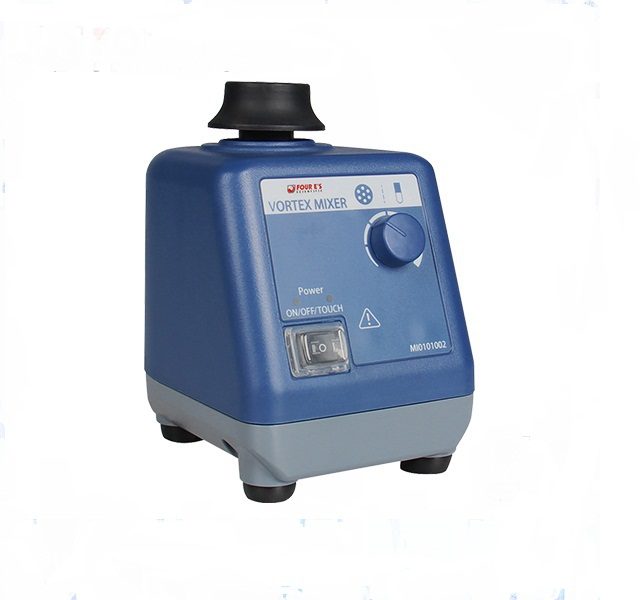

Vortex Mixer
Features
LED display for easy reading of time and speed
Wide speed range of 0-3000rpm
Orbital diameter of 6mm
Touch mode, timer mode and continuous mode are available
Brushless motor and sturdy iron/aluminum casting base
Low operation voltage (12V) for full protection
Excellent mixing capability can make full 50ml containers mix within 3 seconds
Perfect dynamic balance design can eliminate any movement in mixing
Various applications with different interchangeable attachments
Power supply is CE, cULus, CCC, SAA and FCC certified
Specifications
|
Model |
MI0101002D Vortex Mixer |
|
Operation Mode |
Continuous / touch operation |
|
Type of movement |
Orbital |
|
Orbital diameter |
6mm |
|
Speed range |
0-3000rpm |
|
Speed display |
LED digital |
|
Permissible ambient temperature |
5 – 40 °C |
|
Permissible relative humidity |
80% |
|
Protection class according to DIN EN 60529 |
IP 21 |
|
Voltage |
200 – 240 / 115 / 100 V compatible |
|
Frequency |
50/60 Hz |
|
Motor rating input |
30W |
|
Motor rating output |
15W |
|
Dimensions (W x H x D) |
107x146x166m |
|
Weight |
3kg |
Accessory
|
Part No. |
Description |
|
MI0101002-31 |
Test Tube Attachment, 54 x Φ6mm, used with MI0101002-14 |
|
MI0101002-32 |
Test Tube Attachment, 18 x Φ10mm, |
|
MI0101002-33 |
Test Tube Attachment, 12 x Φ12mm, |
|
MI0101002-34 |
Test Tube Attachment, 8 x Φ16mm, |
|
MI0101002-35 |
Test Tube Attachment, 8 x Φ20mm, |
|
MI0101002-36 |
Microtiter plate attachment, |
|
MI0101002-14 |
Universal top plate |
|
MI0101002-37 |
Erlenmeyer flask attachment 100-250ml, |
|
MI0101002-13 |
Standard top |
