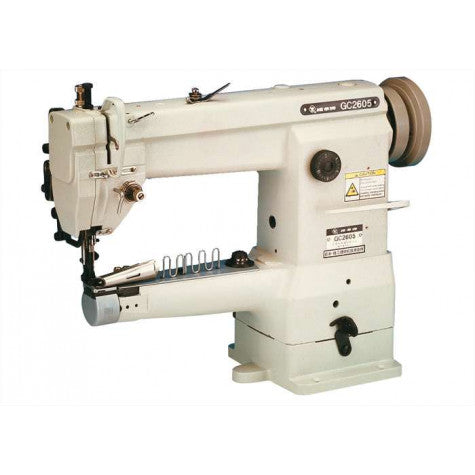

Typical GC2605 – Industrial Walking Foot Cylinder Arm With Binding Attachment

Typical GC2605

The most affordable hose shuttle stitch machine with unified material feed. The sleeve diameter – 50 mm is designed for sewing products with curved lines. A convenient model for wrapping clothes, bags, leather products and leather goods. Model GC2605 – equipped with a mount for fixtures for edging slices of material. The platform on which the edger is mounted moves in unison with the lower teeth. The foot is mounted on one side so that the pick is fed as close to the needle as possible. Thus, the lines lie flat and the product edging is very neat.

The material feeding mechanism is a triple (unison) conveyor, which makes it possible to work with heavy tissues and medium-density skin.

Maximum sewing speed – 2000 stitches per minute

Shuttle enlarged with vertical plane of rotation.

Drip grease.

Presser foot lift: hand – 6.5 mm / knee lifter -13 mm

Maximum stitch length 6 mm

Needles DРх17 No. 110-180 It is completed with a table and the engine.

Warranty 12 months.
