Patient Monitor Cms9000 & Pr/Nibp/Spo2/Tem/Ecg

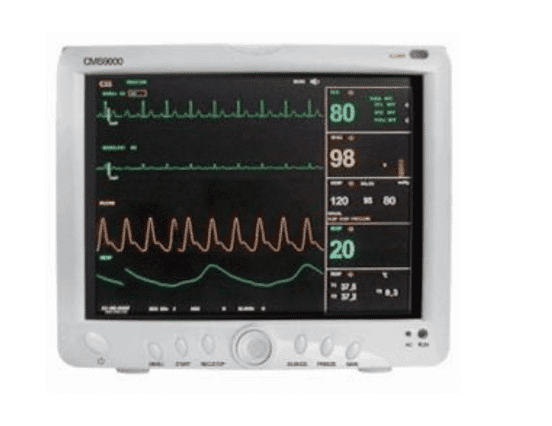

Patient Monitor CMS9000 & Pr/Nibp/Spo2/Tem/ECG

Features:

• 12.1″ Screen, Colour TFT SCreen, waveform up to 8 channels.
• Light and portable with a built-in rechargeable battery.
• Up to 10 kinds of monitor parameters.
• Arrhythmia analysis, pace marker detection, and S-T Segmentanalysis.
• 72 Hour storage and review of trend grams and tables, 40-second review of olographic waveforms.
• Built-in recorder – optional.
• All-round monitor of an adult, pediatric, and neonatal.
• Electrosurgical unit and defibrillation protected.

Specifications:

• Display: Colour TFT Screen.

NIBP

• Method: Oscillometry.
• Operation Modes: Manual/Automatic/STAT
• Measurement unit: mmGh/kPa selectable
• Measurement types: Systolic, Diastolic, Mean
• Measurement range: Adult 10-270mmHG
• Overpressure protection: Yes
• Resolution: 1mmHg
• Accuracy: Mean error and standard deviation per ANSI/AAMI SP-10
• Alarm: Systolic, Diastolic, Mean

SP02

• Measurement range: 0-100%
• Accuracy:±2 digit (70~100%) 0~69% unspecified
• Alarm range: 0-100%

ECG: 5-lead or 3-lead selectable

• Input: 5 lead: RA, LA, RL, LL, V or R, L, N, F, C
• Lead selection: I, II, III avr, avl, avf, vx, CAL
• Gain selection: 12.5mm/s, 25mm/s, 50mm/s
• Accuracy:±1bpm or±1%, whichever is greater.
• Protection: Withstand 4000VAC/50Hz voltage in isolation against electrosurgical and defibrillation.
• Calibration Signal: 1mV±5%
• Operation modes: Dianostic, Monitor, Surgery
• Alarm range: 15-300bpm
• Peadiatric/Neonatal: 15-350bpm
• Alarm range: -2.0mV~2.0mV
• S-T detection: Yes, Arrhythmia analysis: Yes
• Alarm: Yes, audible and visual alarm, alarm events recallable.

Respiration

• Method: RA-LL impedance
• Peadiatric/Neonatal: 6-150rpm
• Alarm range: 6-120rpm
• Peadiatric/Neonatal: 6-150rpm
• Apnea Alarm: Yes

Temperature

• Resolution: 0.1°C
• Channel: Dual-channel
• Alarm range: 0°-50°C

Option:

ETC02

• Measurement Mode: Side-stream or mainstream
• Measurement range: EtC02: 0-99mmHg
• Accuracy: CO2 concentration
• Apnea Alarm: Yes

CO

• Method: Thermo-dilution
• Measurement range: CO0.1-20Lit/min

IBP

• Channel: 2 channels
• Pressure transducer: Sensitivity: 5(mV/V/mmHg)
• Transducer sites: ART, PA, CVP, RAP, LAP, ICP
• Alarm range: -10~ 300mmHG
