Oem High Speed Handpiece Fiber Optic Kavo Compatible

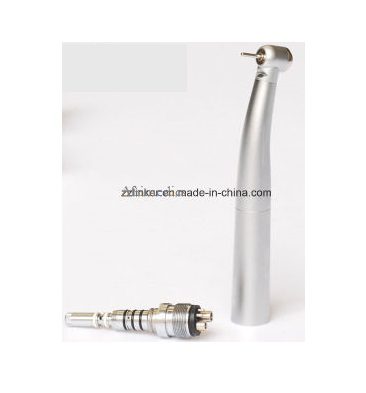

LK-M66 Kavo Compatible Quick Coupling Fiber Optic Dental Handpiece

technical data
Air Pressure:0.23(Mpa)-0.25(Mpa)
Rotor Speed:350(krpm)-400(krpm)
Torque:0.4(N)-0.45(N)
Water flow:90(min/ml)-110(min/ml)
Water pressure:0.2(Mpa)-0.23(Mpa)
Atomization pressure:0.3(Mpa)-0.35(Mpa)
Noise:≤65dB
Head height: 13.45mm (including rear cover)
Head diameter: 11.25mm
Cartridge height: 12.2mm
Cartridge diameter: 9.5mm
Descriptio:standard handpiece,push button ,built-in clean head system,single water spray,4 holes and 2 holes optional,folder cartridge,cartridge can be compatible with NSK PANA MAX2 handpiece

Feature:

9.1mm-slim body design, provides maximum visibility of the operating filed, easily reaching all areas of the oral cavity. which can improve dentist’s treatment efficiency
Built-in anti-retraction system is to prevent the blood, viruses splash into the hand piece head, which is more durable than normal handpiece.
Movement structure of the upper cartridge, increasing the balance of upper and lower bearing, avoid the cartridge frict with the back cover when it rotating.
4-groove design of the cartridge makes the gas smoothly flow from the inside cartridge, to reduce the noise and protect the normal revolution.
