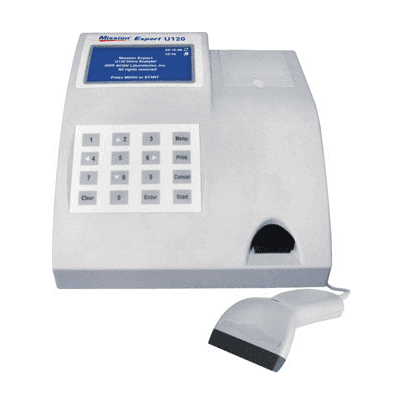

Mission U 120 Urine Analyzer
The Mission® U120 Urine Analyzer is a great tool to use with the Mission Urinalysis Reagent Strips. This analyzer has the capability of running up to 120 tests per hour and saving and recalling 2000 results automatically. The Mission® U120 Urine Analyzer facilitates high volume testing and provides a sense of confidence in the accuracy of the results. This analyzer is 510(k) Cleared and CLIA Waived for use with the Mission® Urinalysis Reagent Strips and Mission® Urine Controls.
Fast and Accurate
• Up to 120 tests/hour in Continuous Test Option
• Test categories include Routine, STAT and QC
• Automatic calibration for accurate results and easy operation
Convenient Features
• Can read strips with up to 11 parameters, including Microalbumin/Creatine/Calcium
• Record Operator/Patient ID by Manual Entry and Barcode Reader
• Capability of data transfer to an external computer or LIS
Reliable
• Saves and recalls the last 2,000 results automatically
• Can print up to 3 copies per test for convenient reviewing and easy record keeping
• Option to print results on sticker paper for quick and simple record management
Product Specs
| Features | Specifications | |
| Type | Manual | |
| Methodology | Reflectance Photometry | |
| Detection | Photosensitive Diode | |
| Throughput | Single Test Option: 60 tests/hour Continuous Test Option: 120 tests/hour |
|
| Test Categories | Routine, STAT and QC | |
| Memory | Last 2,000 results | |
| Strip Incubation Time | 1 Minute | |
| Wavelength of Monochromatic LED | 525 nm and 635 nm | |
| Default Strips | 8, 9, 10, 11 Parameters (108 mm x 5 mm) | |
| Strips Available | 1-11 parameters (108 mm x 5 mm); see URS Parameters | |
| Total Combinations Per Analyzer | 4 Combinations | |
| Analyzer Ports | RS232C Port for Barcode Reader or Data Transfer USB Port for Data Transfer 25 Pin Parallel Port for External Printer |
|
| Data Entry Capabilities | Operator/Patient ID – Manual Entry and Barcode Reader (Up to 20 characters) | |
| Connection Capabilities | Internal Thermal Printer (included) Optional External Printer (not included) |
RS232C Barcode Reader (optional) USB or RS232C Data Transfer Cable (optional) |
| Major Readable Barcodes | Code 128, Code 39, Codabar (NW-7), EAN 8, EAN 13, Interleave 25 , UPCA, UPCE | |
| Calibration | Automatic | |
| Available Languages on the Screen | English and additional language(s) | |
| Operating Conditions | 0-40°C (32-104° F); < 85% RH | |
| Storage Conditions | -5-50°C (23-122° F); < 90% RH | |
| Power Source | 100-240 VAC, 50-60 Hz | |
| Dimensions (L x W x H) | 27.2 cm x 26.9 cm x 14.6 cm (10.7″ x 10.6″ x 5.7″ ) | |
| Display Dimensions (L x W) | 10.8 cm x 5.7 cm (4.2″ x 2.2″) | |
| Weight | 2.6 kg (5.7 lbs) without batteries or power supply | |
Product Accessories
Barcode Reader
Optional Bar-code Reader connects to the analyzer for faster input of information. It scans the canister code for quick canister code recognition to operate the analyzer as well as quick entry of Patient ID. Both canister code and Patient ID can be entered manually as well.
Printer Paper Rolls
Printer paper rolls is available in both Thermal paper and Sticker paper. Printing results may either be automatic or manual. Can print up to 3 copies per test results for convenient record management.
Data Transfer
Data Transfer Kit is used for data transfer to Personal Computer (PC) or Laboratory Information System (LIS). RS232 cable is required for connection to a personal computer and the analyzer in order to download data to PC or LIS.
