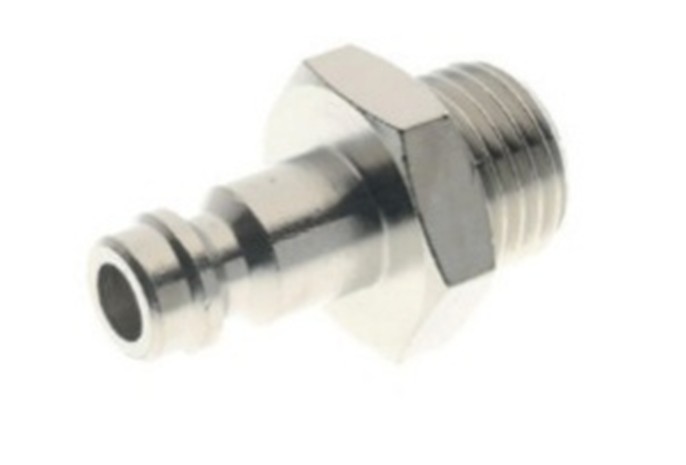

INTERCHANGEABLE WITH TYPE 26 RECTUS SERIES MINI COUPLERS & INSERTS 1/8″ 1/4″ Mini Male Insert

Compatibility & Series Overview

• The Rectus Series 25 couplings and plugs are indeed interchangeable with Rectus Series 26 (also referred to as Type 26 or T‑26), as well as other European standard profiles like Ceja 320, Tema 1600, JWL 520/530, Norgren 234/238, etc.

• These are considered European industrial “Hi‑Flow” profile with a nominal bore around 7.2 mm, designed for a high flow rate pneumatic connection

Mini Male Inserts – 1/8″ & 1/4″ Description

Though there’s no one consolidated “mini insert” spec, here’s what we can piece together:

1/8″ BSP (Male) Thread Plug (Series 25 / 26 Compatible)

• Material: Steel hardened with zinc plating (plug); brass and hardened steel/nickel‑plated components in respective series.

• Thread Size: R (BSPT) 1/8″

• Maximum Operating Pressure: Up to about 35 bar (approx. 500 psi)

• Temperature Range: Typically –20 °C to +100 °C (with NBR seals)

• Operation: Standard single‑shut‑off design — plug vents internal air when disconnected. Simple push‑in operation; release by pulling back the sleeve

1/4″ BSP (Male) Thread Plug

• Essentially same specs as above, but with R 1/4″ (BSPT) male thread. Available in Series 25 plugs, compatible with Type 26 couplers

• Similar materials, flow characteristics, operation, and pressure/temperature specs apply.
