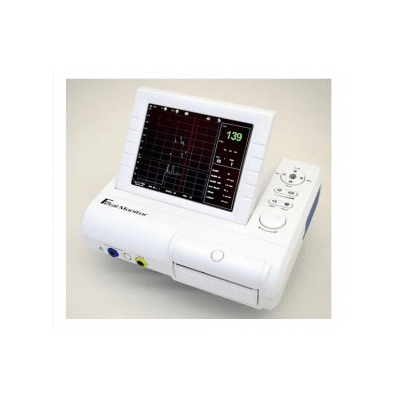

FETAL MONITOR POP UP SCREEN – CMS800G
– Light weight, space-saving, easy to use
– 8.4″ LCD screen, folding 60 degree
– Display waveforms and digitals simultaneously
– FHR 120-160 normal area highlight
– 12 hours data and waveform storage and review
– FHR upper and lower limit alarm
– Twins monitoring function option
– High sensitive 9 Elements 1 MHZ Pulse Doppler transducer
– Built-in PC Network can be connected to the central monitoring system
SPECIFICATIONS:
| MODEL: | FETAL MONITOR CMS 800G |
| Display: | 8.4” colour LCD display, 60 degree folding |
| Recorder:
Record paper: Printing Width: Effective printing width: Printing speed: Record message: |
Thermal printer
Z-fold, thermal paper 112mm 104mm 1,2,3cm/min Data, time, TOCO Trend graph, paper speed, FHR type, FHR Trend graph etc |
| Signal interface | RJ 45 interface |
| FHR
Technique: Ultrasound Frequency: |
Ultrasound pulse Doppler and auto correlation
1MHz |
| FHR range: | 50-210bpm |
| Resolution | 1bpm |
| Accuracy: | ± 2bpm |
| TOCO:
Range: Resolution: Non-linear Error: Zero control: |
0-100%
1% ≤±10% Manual |
| Fetal movement: | Manual fetal movement mark |
| Power Supply: | AC 100-240v, 50/60Hz
P max=60VA |
| Dimensions: | 320mm x 260mm x 80mm |
| Weight; | 3.2kg |
| Quality Standard: | CE |
