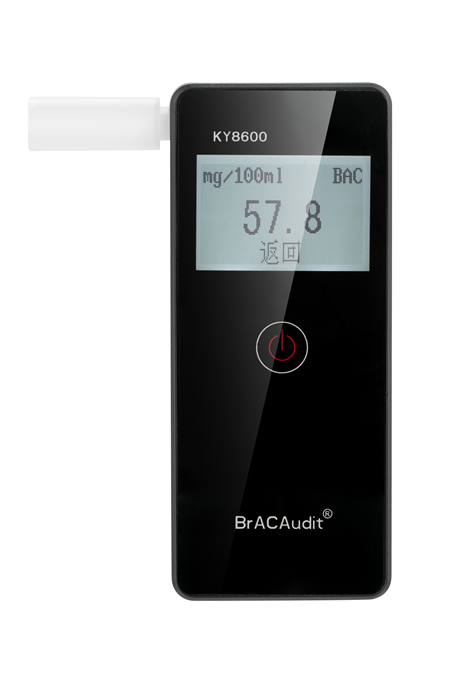

Alcohol Tester KY-8600

With fuel cell based and designed for personal use, KY-8600 is a handheld instrument preliminarily to determine a subject’s breath alcohol level quickly and precisely.

Product Features

1. UK made Electrochemical/Fuel cell Sensor: Highly specificity to alcohol, unaffected by other breath contaminants.

2. Data Handling Ability: Compact gas circuit design and advanced analysis process assure fast, accurate and stable testing performance.

3. Simple Structured: Small volume and easy carryover.

4. LED Mouthpieces Inlet Circle: Visually display of test result.

• Details: Technical Data
• Measurement Principle: Electrochemical sensor
• MeasurementRange: 0.000mg/L～2.500 mg/L
• Resolution: 0.001 mg/L
• Accuracy: Measurement Error, in relation to the ethanol standard: MeasurementRangeC / ( mg/L) Measurement Error
• C<0.400: ±0.020 mg/L
• 0.400≤C<1.000: ±10%
• C≥1.000: ±20%
• Calibration: Every 6 months
• Temperature range – operation: 0°C～40°C
• Temperature range – storage: -30°C～70°C
• Optimum Storage Conditions: Temperature：20°C±5°CHumidity：<80%RH Pressure：86 kpa～106 kpa No vapor or electromagnetic disturbances in the environment are influencing the normal working conditions of the device
• Blowing Time: 2.5seconds（breath flow：≥20L/min）
• Display: 128X64 black and white screen
• Dimension(LXWXT): 105mm）×45mm×17mm
• Batteries: 7 alkaline dry batteries 1.5AAA*2
• Weight: Approx. 75g (including battery)
